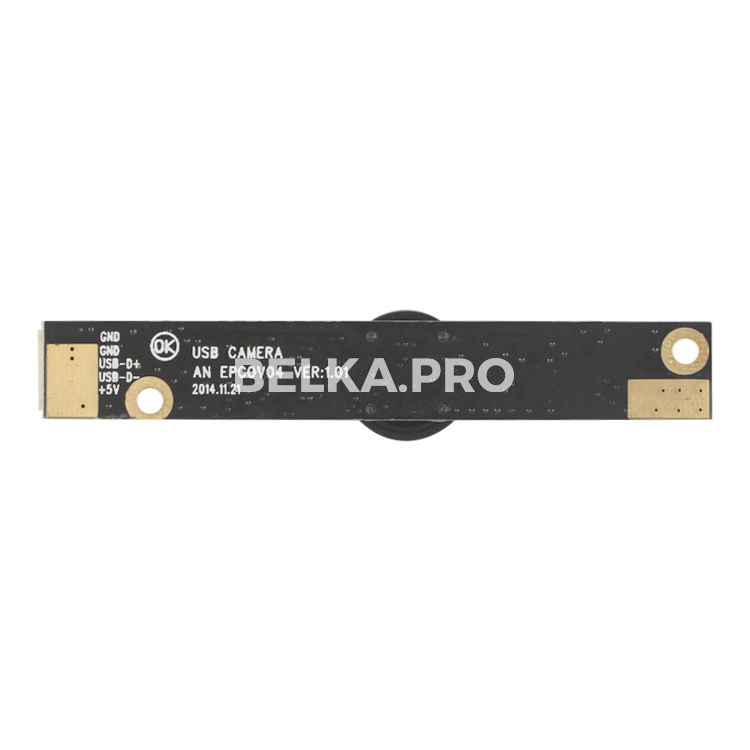

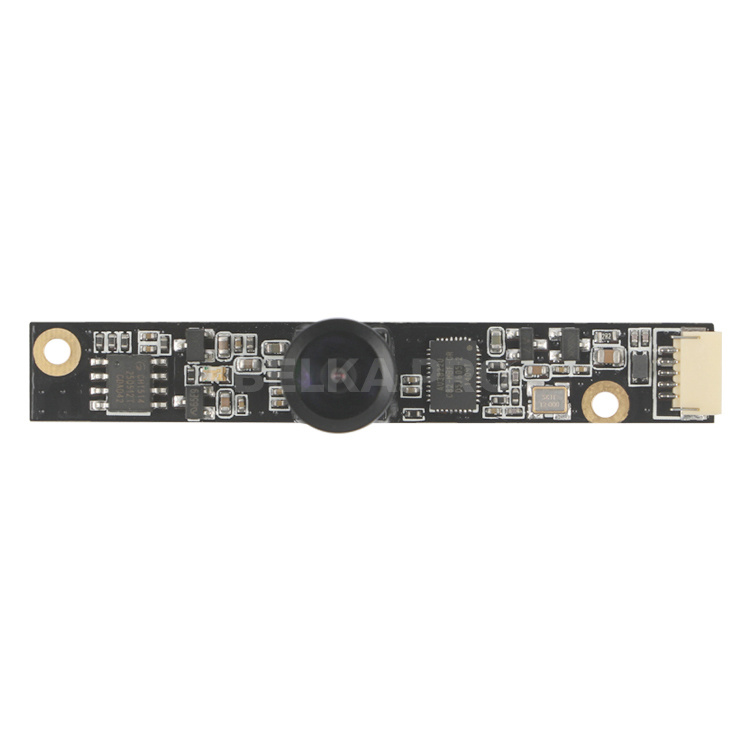

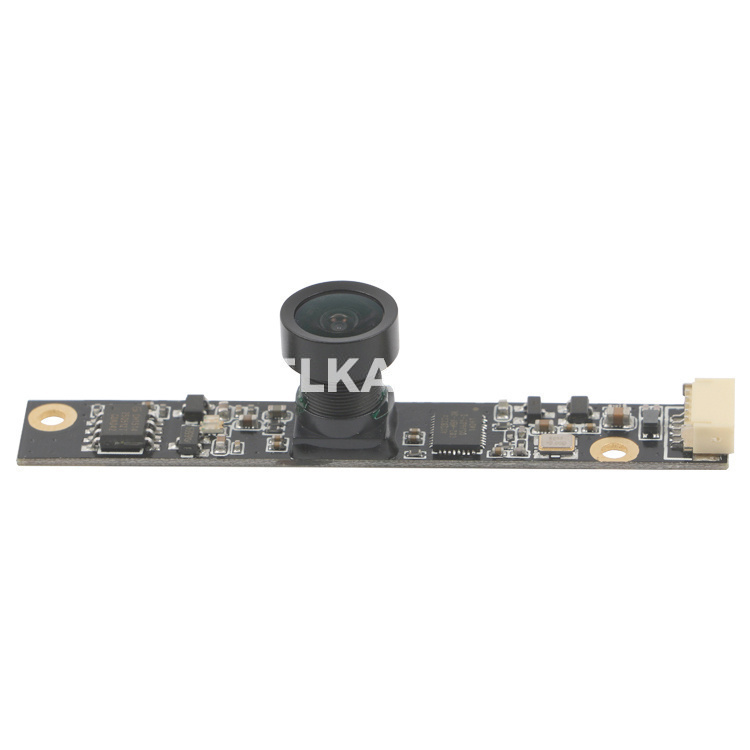

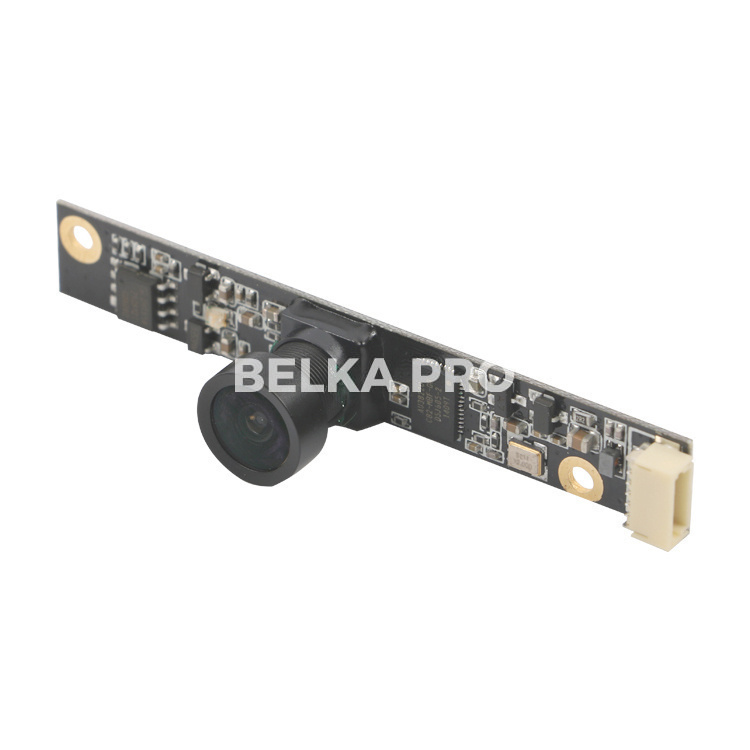

USB камера 2МП 2MP01M без корпуса.
Совместима с Windows, Linux, Andorid.
Optical size Sensor
1/4 inch CMOS sensor
Sensor Resolution
1600(H) * 1200 (V),UXGA(YUV2)
Unit pixel size
1.4um
Color filter
RGB Bayer pattem
Shutter type
Electronic Rolling Shutter
Max.capture frame rate
5fps@full resolution, 5fps@UXGA(YUV2)
Max. video frame rate
30fps@VGA,30fps@720p (MJPG)
AUDIO sensor
Digit Microphone
MIC sensitivity
-26DB+/-3DB
View Angle
66°
F Number
2.8
AEC / AGC/ White Balance
Auto
Focus Distance
with fixed lens 5CM-
Interface
USB 2.0
Power
USB Bus Power

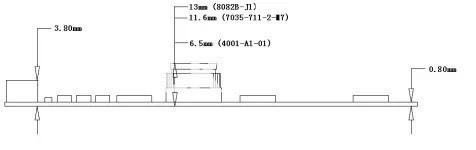

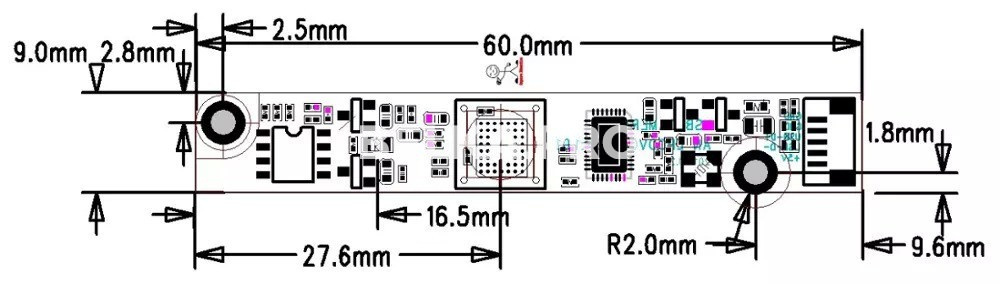

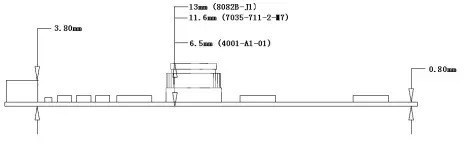

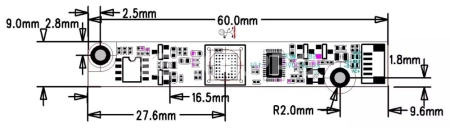

Dimensions (mm) (L x W x H)
60mm * 8mm *6.3 +/-0.2mm
Operating Temperature
0 to 50°C
Operating System Request
Windows XP/ Windows 7/ Windows 8(UVC), Linux(>V2.6 )
Max pixel rate
28Mp/s
ADC accuracy
10-bit
USB 2.0 PHY
On Chip PHY
Power Consumption
Standby
4mA
Operating
100mA+/-10mA @ 720P
Совместима с Windows, Linux, Andorid.
Optical size Sensor
1/4 inch CMOS sensor
Sensor Resolution
1600(H) * 1200 (V),UXGA(YUV2)
Unit pixel size
1.4um
Color filter
RGB Bayer pattem
Shutter type
Electronic Rolling Shutter
Max.capture frame rate
5fps@full resolution, 5fps@UXGA(YUV2)
Max. video frame rate
30fps@VGA,30fps@720p (MJPG)
AUDIO sensor
Digit Microphone
MIC sensitivity
-26DB+/-3DB
View Angle
66°
F Number
2.8
AEC / AGC/ White Balance
Auto
Focus Distance
with fixed lens 5CM-
Interface
USB 2.0
Power
USB Bus Power
Dimensions (mm) (L x W x H)
60mm * 8mm *6.3 +/-0.2mm
Operating Temperature
0 to 50°C
Operating System Request
Windows XP/ Windows 7/ Windows 8(UVC), Linux(>V2.6 )
Max pixel rate
28Mp/s
ADC accuracy
10-bit
USB 2.0 PHY
On Chip PHY
Power Consumption
Standby
4mA
Operating
100mA+/-10mA @ 720P
